The BT-210 is a product that uses Bluetooth communication to enable serial
The BT-210 covers the circuit with a case to protect it, and it uses a connector-type cable to install on a robot and RC-100B.
You can control your robot without any problems even when the infrared
control condition is not optimal such as in a robot competition.
The SLAVE module can be used when controlling the robot from a device that
supports Bluetooth communication such as a smartphone, tablet PC or notebook.

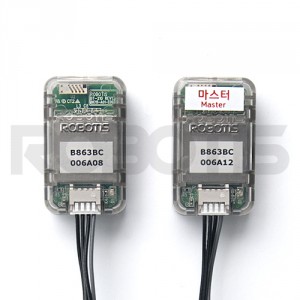

The MASTER module and the SLAVE module are divided – MASTER module
for the transmitter; SLAVE module for the robot.
When first released and purchased, the two modules are paired so there is no
need for a separate ID setting procedure. If either of the components is lost,
you will have to purchase the BT-210 (Product code 902-0076-000) for pairing.
Directions for pairing can be found in our E-manual.
Click to refer to directions for pairing.
The initial Pin Code when released from factory is 0000. Use this when
connecting to the Bluetooth device(SLAVE). When a change is needed, please
refer to the link above. However, OpenCM-9.04 or A C-type controller is
■ Included Components
Wireless Communication Module
BT-210 (120mm cable included)
■ H/W Specifications
18mm x 30mm x 9.1mm
Bluetooth Specification 2.1 Support
Effective Communication Distance
10 M(Class 2)
2.4 GHz ISM Band
Basic Transmission Speed
Bluetooth Profile Support
SPP (Serial Port Profile)
Electric Current Used
-40℃ ~ 85℃
1,200bps – 400,000bps
UART (3.3V Level)
■ Installation to Products
Controller : CM-100A, CM-530 à Wireless control, wireless download possible
CM-510, CM-700, CM-900 à Wireless control possible (firmware update required)
Remote Control : RC-100B (Please refer to comparison table below)
Installation not supported
-Remote Control : RC-100, RC-100A
- Controller : CM-100, CM-5, CM-2+
[Link to e-manual]
